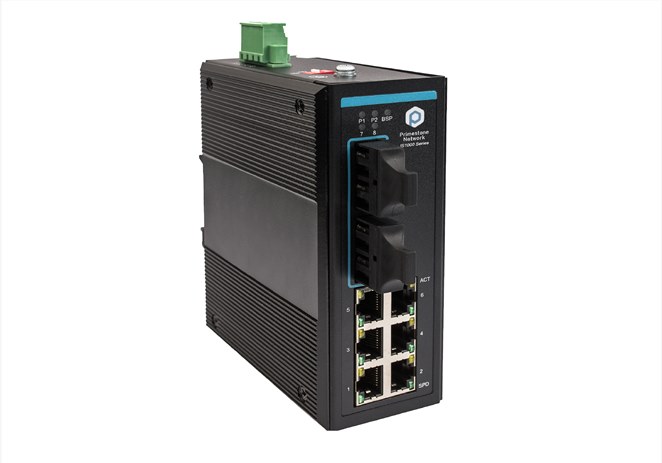

IS1000-1208 Series Rugged IP40 Unmanaged Industrial Ethernet Switch 6 port+2 Optical Port

>Supports 6 100m electric ports and 2 100m optical ports
>Support IEEE802 3 / 802.3u / 802.3x store and forward mode
>Support 10 / 100M, full / half duplex, MDI / mdi-x adaptive function
>Support high priority uplink ports to ensure that upward forwarding is not blocked
>Support BSP coder switch, which is used to suppress network broadcast storm and make the network more stable
>Redundant dual power supply specification, anti reverse connection overcurrent protection function
>-40 ℃ ~ + 85 ℃ wide temperature design ensures that the equipment can adapt to various harsh site environments
>IP40 grade protection, corrugated high-strength metal shell, no fan, low power consumption design

IS1000-1208 Series Rugged IP40 Unmanaged Industrial Ethernet Switch is a two-layer unmanaged switch that meets the requirements of industrial design. The unmanaged Switch adopts mature technology and open network standards, adapts to low temperature and high temperature, and also has strong anti electromagnetic interference, salt fog resistance, earthquake resistance and anti shake. The unmanaged Switch is equipped with redundant dual DC power supply (12 ~ 48V) wide voltage input, meets the requirements of harsh working environment on the industrial site, and provides efficient, reliable and Quick solution.

IS1000-1208 Series Rugged IP40 Unmanaged Industrial Ethernet switches are located in the network access layer, equipped with 6 100m electrical ports and 2100m optical port. They support BSP storm suppression unplugging switch and high priority uplink ports. It can be used in various field environments and can be flexibly networked. It can be widely used in industrial application scenarios such as industrial control automation, road traffic control automation, building automatic control system, mine automatic control system, oilfield control automation, hydropower station control automation, power system control automation, machine room monitoring system and so on. It can work stably, reliably and efficiently to create a rock stable industrial Internet of things.

Product Specification	Interface	100m electric port：6x10/100Base-T(X)RJ45
		Code dialing switch: BSP code dialing switch, enabling the storm suppression function
		Power interface: 4-core 5.08mm spacing terminal block
	Mechanical Structure	Dimension：136 mm(H)× 105 mm(D)× 52.8 mm(W)
		Installation method: DIN rail installation
		Weight：<750g
		Degree of protection：IP40
	Environment Requirements	Work Temperature：-40℃～ +85℃
		Storage Temperature：-40℃～ +85℃
		Relative humidity: 5% ~ 95% (non condensing)
		MTBF : 100000 小时
	Exchange Properties	Forwarding method: store and forward
	Exchange Properties	Cache size：448K
	Transmission Distance	Multimode fiber： 850nm，2Km；1310nm，5Km
	Transmission Distance	Single mode fiber：1310nm，20Km；1310nm，40Km；1310nm，60Km；1550nm，80Km
	Power Supply Requirements	Work voltage：DC 12~48V
	Power Supply Requirements	Overall power consumption:<4W
	Indicator lights	Power indicator：P1、P2
		Broadcast storm suppression indicator：BSP
		Port operation status / connection status indicator：Electric port ACT/SPD（1 ～ 6），optical port 7~8
	Warranty	5 years

IS1000-1208 Series Rugged IP40 Unmanaged Industrial Ethernet Switch 6 Electrical port 2 Optical Port

Order Information：

Product Model	Ports
Product Model	100m Optical Port	100m Electric Port
IS1000-1208-2SC-S20-2DC unmanaged switch	2xSC Single mode dual fiber fixed optical port(20km)	6
IS1000-1208-2SC-B20-TR35-2DC unmanaged switch	2xSC Single mode single fiber fixed optical port(20km,TX1310/RX1550)	6
IS1000-1208-2SC-B20-TR53-2DC unmanaged switch	2xSC Single mode single fiber fixed optical port(20km,TX1550/RX1310)	6
IS1000-1208-SC-M2-2DC unmanaged switch	2xSC Multimode Dual fiber fixed optical port(20km,TX1550/RX1310)	6
