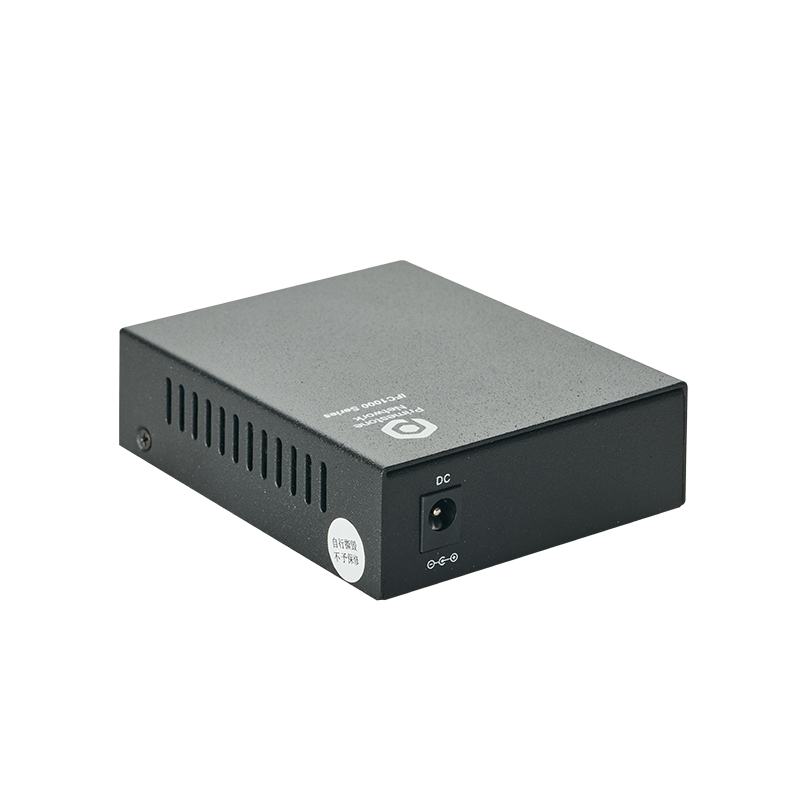

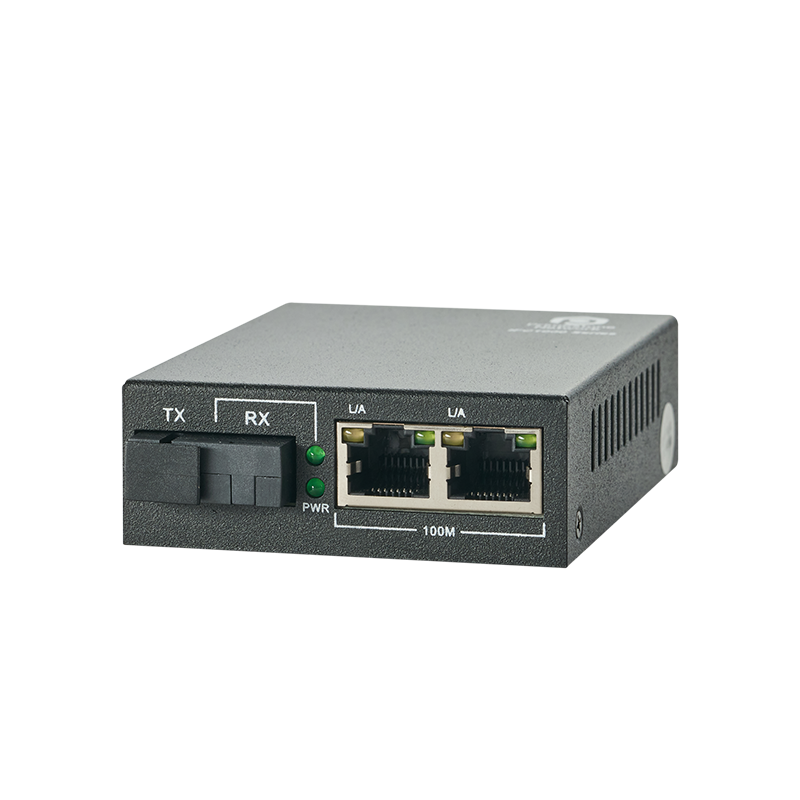

IFC1000-703F Series IP30 Unmanaged Industrial Media Converter Optical Fiber Transceiver

>Support 1 100M optical port, 2 100M electrical ports
>Support IEEE802.3/802.3u/802.3x store and forward mode
>Support 10/100M, full/half duplex, MDI/MDI-X adaptive function
>Support optical link, electrical link activity status indication
>-40℃～+85℃ wide temperature design to ensure that the equipment can adapt to various harsh environments

IFC1000-703F Series IP30 Unmanaged Industrial Media Converter Optical Fiber Transceiver meet industrial design requirements. They adopt mature technology and open network standards, adapt to low temperature and high temperature, and have strong resistance to electromagnetic interference. Equipped with an independent external power supply ( AC 220V input, DC 12V output), meet the harsh working environment requirements of industrial sites, and provide efficient, reliable and fast solutions for the Industrial Internet of Things.

The IFC1000-703F Series IP30 Unmanaged Industrial Media Converter Optical Fiber Transceiver are positioned at the network access layer and are equipped with 2 100M electrical ports and 1 100M optical port. The media converter can be used in various field environments, can be flexibly networked, and can be widely used in industrial control automation, road traffic control automation, building automatic control system, mine automatic control system, oil field control automation, hydropower station control automation, power system control automation, computer room monitoring System and other industrial application scenarios, work stably, reliably and efficiently, creating a rock-solid industrial Internet of Things.

Key Features	Support 1 100M optical port, 2 100M electrical ports
	Support IEEE802.3/802.3u/802.3x store and forward mode
	Support 10/100M, full/half duplex, MDI/MDI-X adaptive function
	Powered by an external power adapter
	Support optical link, electrical link activity status indication
	-40℃～+85℃ wide temperature design to ensure that the equipment can adapt to various harsh environments
	IP30 grade protection, high-strength metal shell, no fan, low power consumption design
Product Specifications	interface information	100M electrical ports:2X10/100Base-T(X) RJ45 ports
		100M optical port:1 1X9 optical port, 100Mbps
		Power connector:DC JACK
	Mechanical structure	Dimensions:26mm(H)×94mm(D)×71mm(W)
		Weight:<400g
		Protection class:IP30
		Heat dissipation method:metal shell, no fan, natural heat dissipation
	Environmental requirements	Working temperature:-40℃～+85℃
		Storage temperature:-40℃～+85℃
		Relative humidity:5% to 95% (non-condensing)
		MTBF : 500000hours
	exchange property	MAC address table1K:
		Forwarding method:store and forward
		Backplane Bandwidth:2Gbps
	Transmission distance	Twisted pair:100m (standard CAT5/CAT5e cable)
		Multimode fiber:850nm, 2Km; 1310nm, 5Km
		Single-mode fiber:1310nm, 20Km; 1310nm, 40Km; 1310nm，60Km；1550nm，80Km
	Power Requirements	Working voltage:DC 12V
		Machine power consumption:<2W
	indicator lights	Power Indicator:PWR
		Port running status/connection status indicator:optical port, electrical port ACT/SPD
	warranty period	5 years

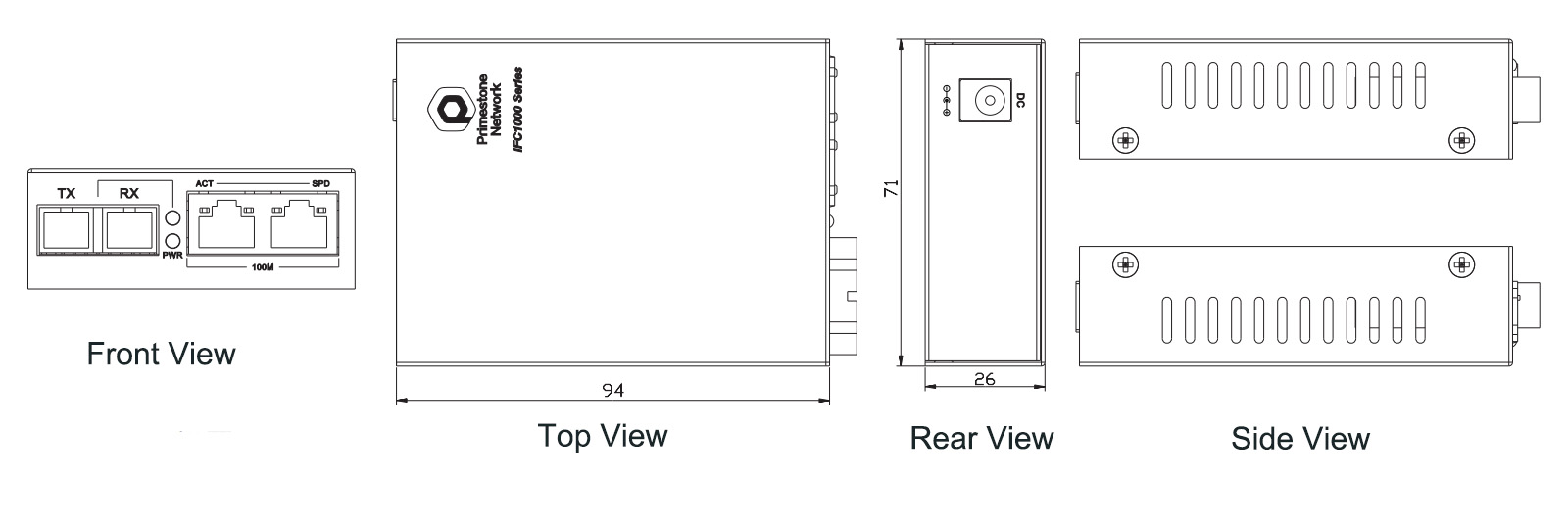

Dimensions

IFC1000-703F Series IP30 Unmanaged Industrial Media Converter Optical Fiber Transceiver

Ordering Information

Product Model	Ports
Product Model	100M optical port	100M electrical ports
IFC1000-703F-SC-S20-DC media converter	1xSC single-mode dual-fiber fixed optical port (20km)	2
IFC1000-703F-SC-S120-DC media converter	1xSC single-mode dual-fiber fixed optical port (120km)	2
IFC1000-703F-SC-B20-TR35-DC	1xSC single-mode single-fiber fixed optical port (20km, TX1310/RX1550)	2
IFC1000-703F-SC-B20-TR53-DC	1xSC single-mode single-fiber fixed optical port (20km, TX1550/RX1310)	2
IFC1000-703F-SC-B40-TR35-DC	1xSC single-mode single-fiber fixed optical port (40km, TX1310/RX1550)	2
IFC1000-703F-SC-B40-TR53-DC	1xSC single-mode single-fiber fixed optical port (40km, TX1550/RX1310)	2
IFC1000-703F-SC-M2-DC	1xSC multimode dual fiber fixed optical port (2km)	2
IFC1000-703F-FC-S20-DC media converter	1xFC single-mode dual-fiber fixed optical port (20km)	2
IFC1000-703F-FC-B20-TR35-DC	1xFC single-mode single-fiber fixed optical port (20km, TX1310/RX1550)	2
IFC1000-703F-FC-B20-TR53-DC	1xFC single-mode single-fiber fixed optical port (20km, TX1550/RX1310)	2
IFC1000-703F-FC-B40-TR35-DC	1xFC single-mode single-fiber fixed optical port (40km, TX1310/RX1550)	2
IFC1000-703F-FC-B40-TR53-DC media converter	1xFC single-mode single-fiber fixed optical port (40km, TX1550/RX1310)	2
